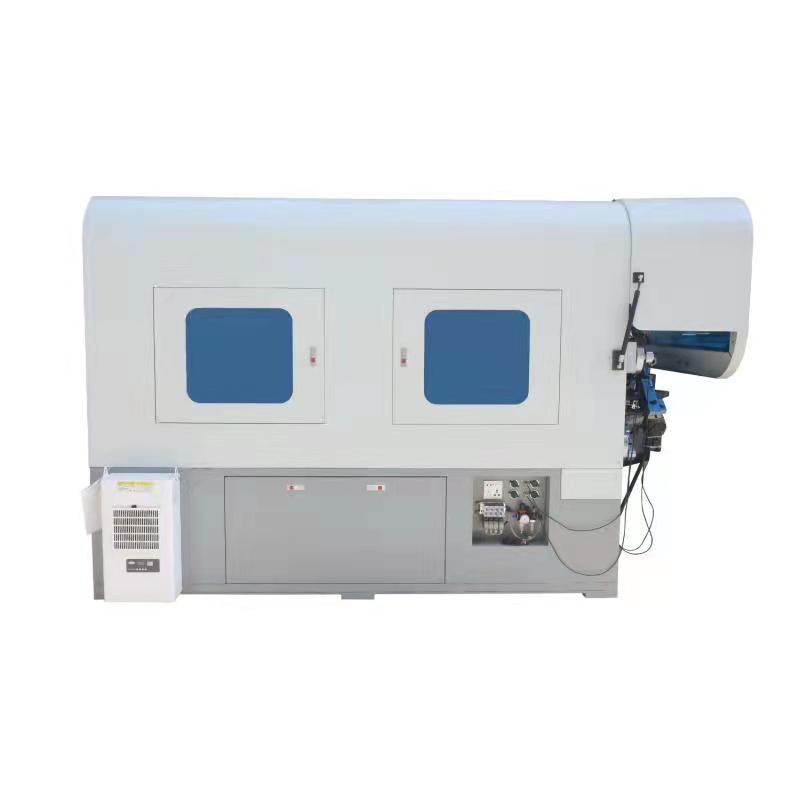

    Camless CNC Compression Spring Forming Machine With 12 Axes

    Ask Lasest Price
    Brand Name : HYD
    Model Number : HYD-40T-12A
    Certification : CE,IS9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Camless CNC Compression Spring Forming Machine With 12 Axes

    Compression Camless CNC Forming Spring Machine With 12 Axes

    ModelHYD-40T-12A
    Number of Axes12 Axes
    Wire DiameterLow carbon Steel:2-6mm High carbon steel:1-4mm
    Guide RailDistance of 100m
    Wire Feed Roller4 Pairs
    Max Wire Feed Speed+/-0.05
    Max Wire Feed Speed100m/min
    Control System+Decoiler1 set
    Serve Motor Power27kw
    Reducer11pcs
    Minimum Length of Angel4Times Wire Dianeter
    Machine Dimension1920*1200*1820mm
    Machine Weight3000kg



    Machine Features:

    1. Using the link rocker design, independent single-axis servo motor control, simple and convenient
    operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
    production efficiency.
    2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track
    Design, you can adjust the left and right, more flexible adjustment.

    3. Taiwan helical gear reducer, the intensity more secure.

    4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.

    5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.
